About:

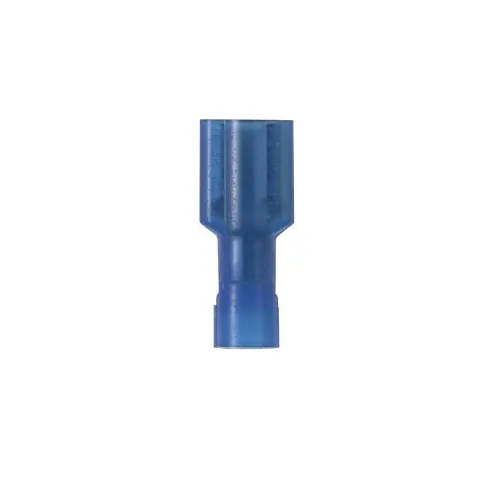

This is a female disconnect terminal engineered to ensure stable and secure electrical connections. With its 16-14 AWG (American Wire Gauge) specification, this disconnect is ideal for medium-sized wire diameters. It's a part of the "Pan-Term" product line and is available in bulks of 1000 units. The nylon insulation adds an extra layer of safety, effectively preventing short circuits and unintended metallic contacts.

Also Known As:

• Female Slip-On Connector
• Spade Terminal
• Quick Disconnect Terminal

Common Applications:

• Household electronic appliances
• Industrial machinery and equipment wiring setups
• Automotive electrical infrastructure
• Electronic gadget circuitry
• Interlinking points in control panels and switchgears

Standards:

• UL (Underwriters Laboratories)
• CSA (Canadian Standards Association)
• RoHS (Restriction of Hazardous Substances) compliance

Construction:

• Plating: The connector's body might feature a tin-plating, which combats corrosion and guarantees a continuous, reliable connection.

• Insulation: Comprised of nylon, this provides both electrical insulation and a modicum of mechanical shielding.

• Connector Body: Usually constructed from brass or a similar conductive material, this ensures maximum electrical conductivity.

Features:

• Durability: Constructed to resist standard wear and tear, thus ensuring longevity in its connections.

• Streamlined Crimping: Designed to facilitate an easy yet secure wire attachment, predominantly via a crimping tool.

• Nylon Insulation: Acts as a protective shield against potential short circuits and accidental metal contacts.

• Compatibility: Specifically engineered for wire gauges that lie in the 16-14 AWG range, providing versatility for diverse wiring scenarios.

• Wide Temperature Performance: Capable of operating efficiently over a broad temperature spectrum, making it adaptable to a multitude of environmental conditions.

Specification:
